Plastic Saws

Products Plastic Saws

Plastic Saws

PRINZ PARTNERSHIP

Hebeish for Engineering Works, a subsidiary of Hebeish Group is the sole agent for PRINZ, plastic saws in Egypt. PRINZ is one of the leading Austrian manufacturers offering a wide range of plastic saws.

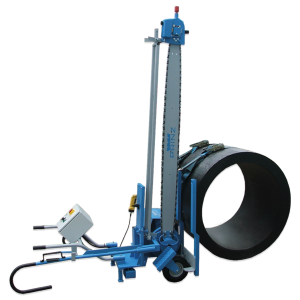

Proficut PE

PRINZ mobile saws are especially suited for cutting plastic pipes and other formed parts. They are mobile and ready for use anywhere due to their compact construction. The cutting equipment is guided by two stabilizers working separately ensuring a smooth cutting finish also at high cutting performance. There is a second enabling switch that guarantees maximum safety.

For pipe diameters up to 1.000 mm* it is recommended to use the 7,5 kW-model and for larger diameters the version with 11 kW.

  • highly accurate cutting with two stabilizers
  • available with 7.5 KW and 11 KW drive motor options
  • easy chain replacement with quick tensioning device
  • solid rubber tires provide maximum stability
  • guide bar lengths up to 250 cm, also with special hard faced edge
  • no installation costs, machine is delivered ready to use
  • quickly pays for itself thanks to the low purchase and operating costs
  • support foot plate
  • enabling switch with 10 m cable

Technical data

Power: 7,5 KW / 11 KW
Motor: Electric
Pipe diameters up to 200 cm*
Cut feed: Manual
Guiding of the cut: Stabilisers
Saw type: mobile saw
Chain type: Special saw chain PLASTICUT for plastic
Guide bar: solid steel with special hard faced edges
Measuring device available: No
Applications: for cutting plastic pipes and other formed parts

* All details depend on the given inner and outer diameter of pipes and on the sort of plastic.

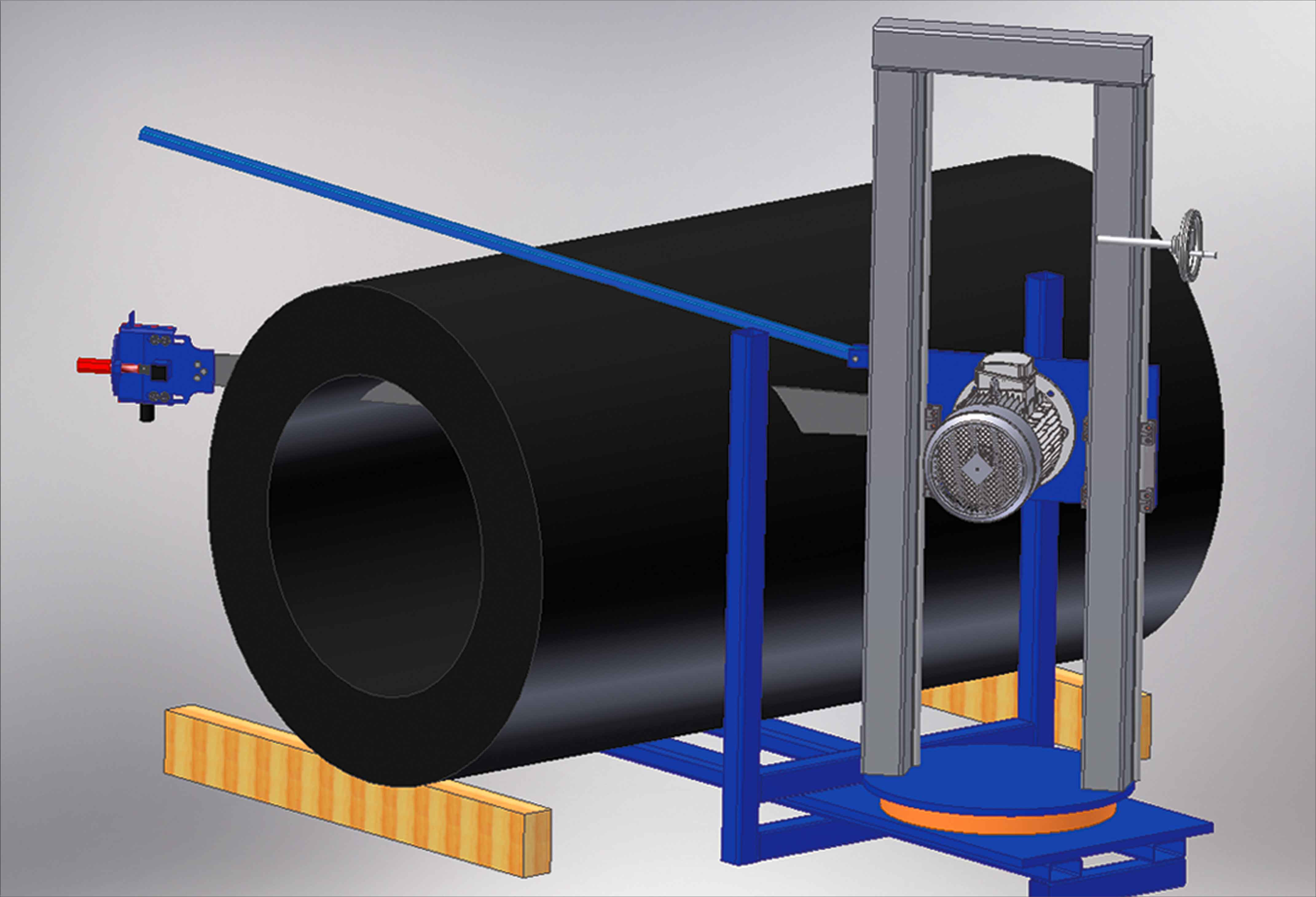

Mobile Mitre Saw

The mobile mitre saw of PRINZ allows miter cuts of pipes and rods up to 45°. Its construction is adjusted to the customer’s needs and therefore suitable for the application in the production as well as directly on the building site. There is a hand wheel that makes the cutting guide easy and precise. A torsion-resistant stabilizer ensures the precise guiding of the cutting equipment. A second enabling switch guarantees maximum safety.

  • saw motor power 11 kW
  • 3×400 V, 50 Hz (special voltages possible)
  • manual height setting
  • precise adjustment to the degree
  • for pipe diameters up to 200 cm*
  • mitre cuts up to 45°*
  • cut accuracy +/- 2 mm*
  • quick payback
  • no installation costs, machine is delivered ready to use

* All details depend on the given inner and outer diameter of pipes and on the sort of plastic.

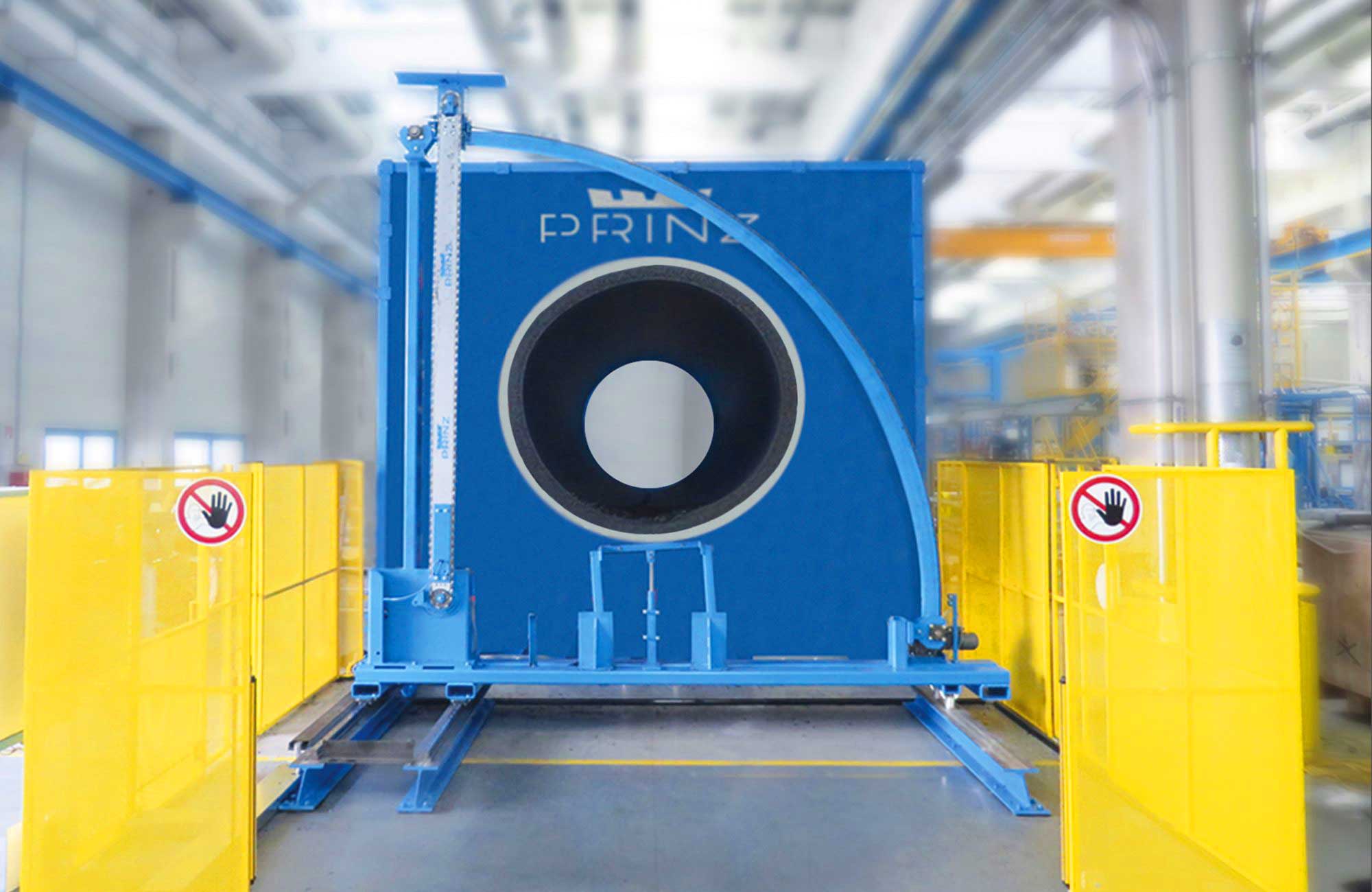

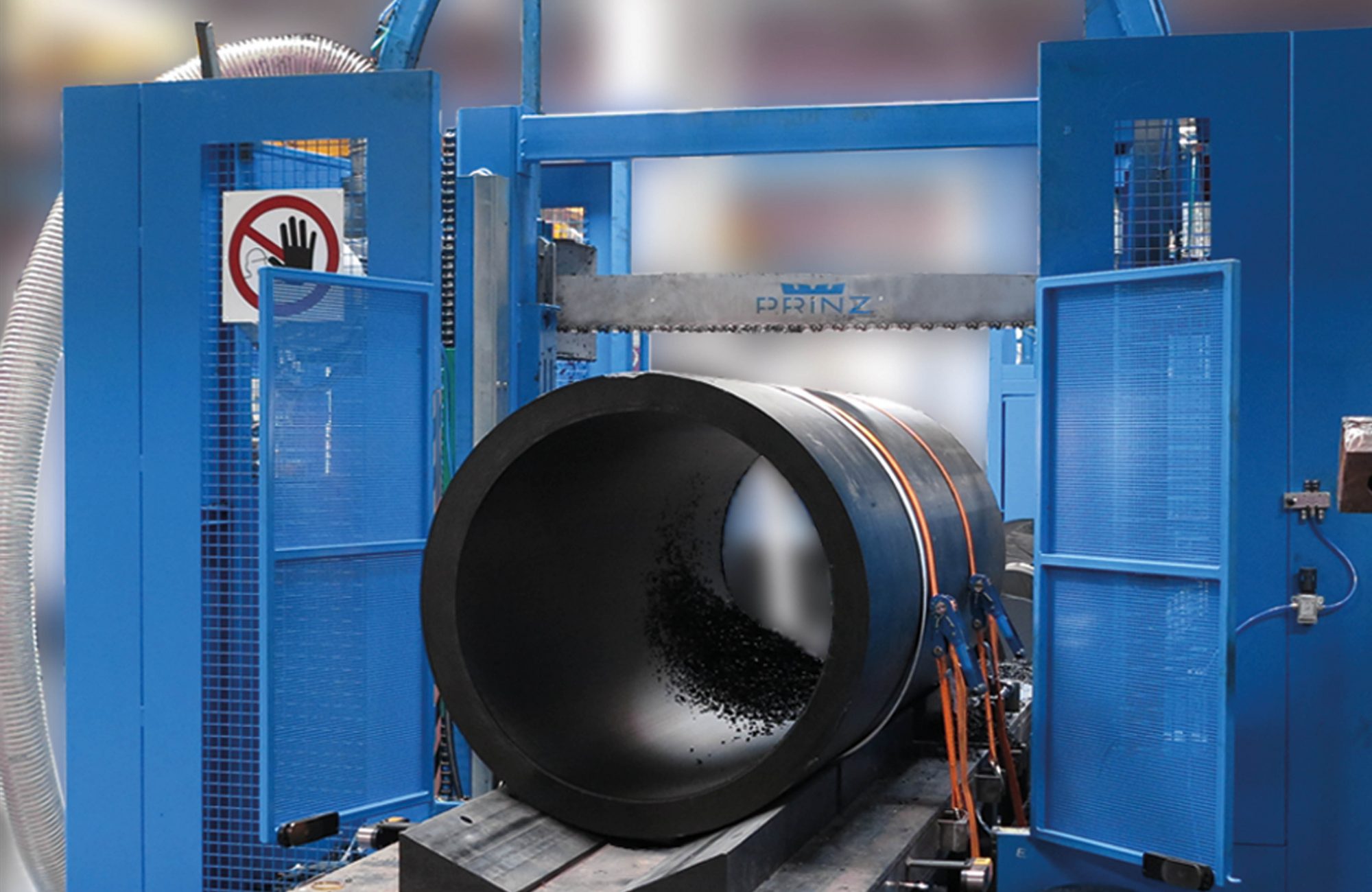

Saws for Solid and Hollow Pipes

For the production area PRINZ offers stationary cutting units with those high-precision cutting at high processing times is easily possible. PRINZ takes advantage of a decade-long experience in building precise cutting systems, extending their development and elaboration of the saws for cutting plastic. As stand-alone solutions, they are working independently from existing production plants.

  • saw motor power 15 kW
  • 3×400 V, 50 Hz (special voltages possible)
  • automatic cutting guide
  • cut accuracy +/- 1 mm*
  • solid and hollow pipes from 300 – 2.000 mm*

* All details depend on the given inner and outer diameter of pipes and on the sort of plastic.
