HDPE FITTINGS HDPE PE100 Segmented Fittings

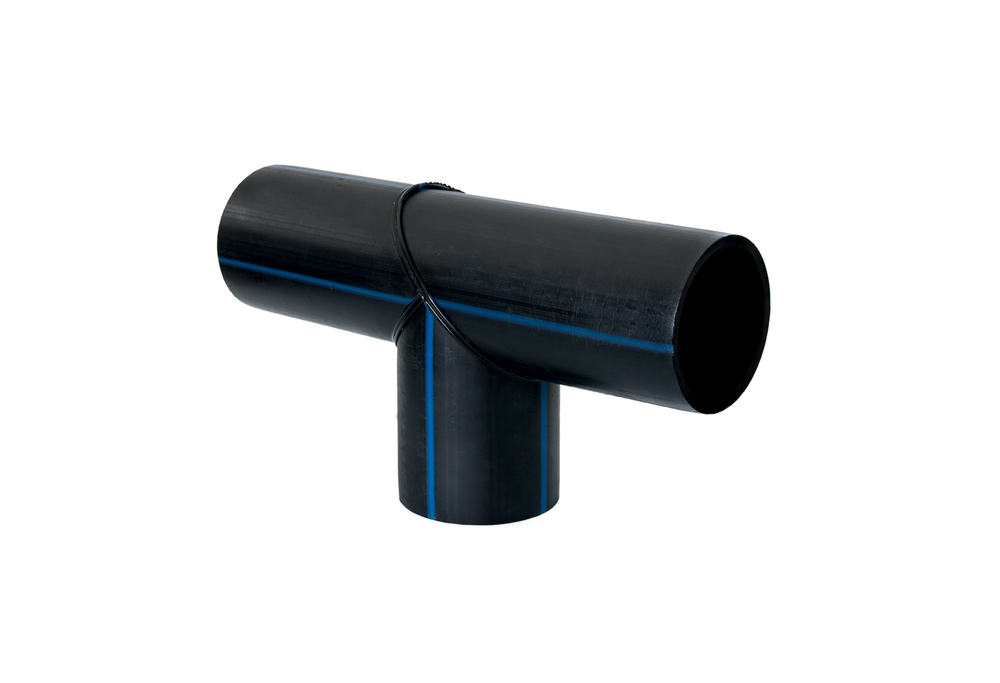

TEE & Reduced TEE

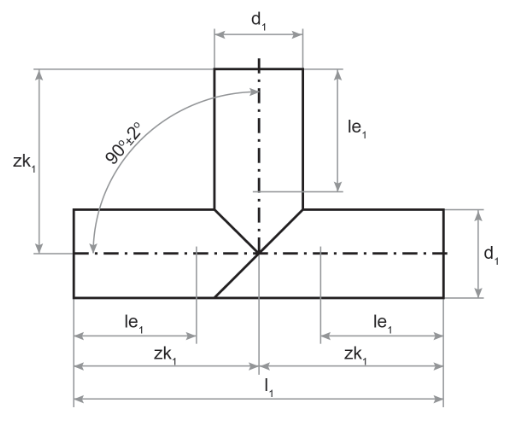

| D1(mm) | LE1(mm) | L1(mm) | ZK1(mm) |
|---|---|---|---|
| 110 | 150 | 410 | 205 |
| 125 | 150 | 430 | 215 |
| 140 | 150 | 440 | 220 |
| 160 | 150 | 460 | 230 |
| 180 | 150 | 480 | 240 |
| 200 | 150 | 500 | 250 |
| 225 | 150 | 530 | 265 |
| 250 | 250 | 750 | 375 |
| 280 | 250 | 780 | 390 |
| 315 | 300 | 920 | 460 |
| 355 | 300 | 960 | 480 |
| 400 | 300 | 1000 | 500 |
| 450 | 300 | 1050 | 525 |
| 500 | 350 | 1200 | 600 |
| 560 | 350 | 1260 | 630 |
| 630 | 350 | 1330 | 665 |
| 710 | 350 | 1410 | 705 |
| 800 | 350 | 1500 | 750 |
*All SDR are available
