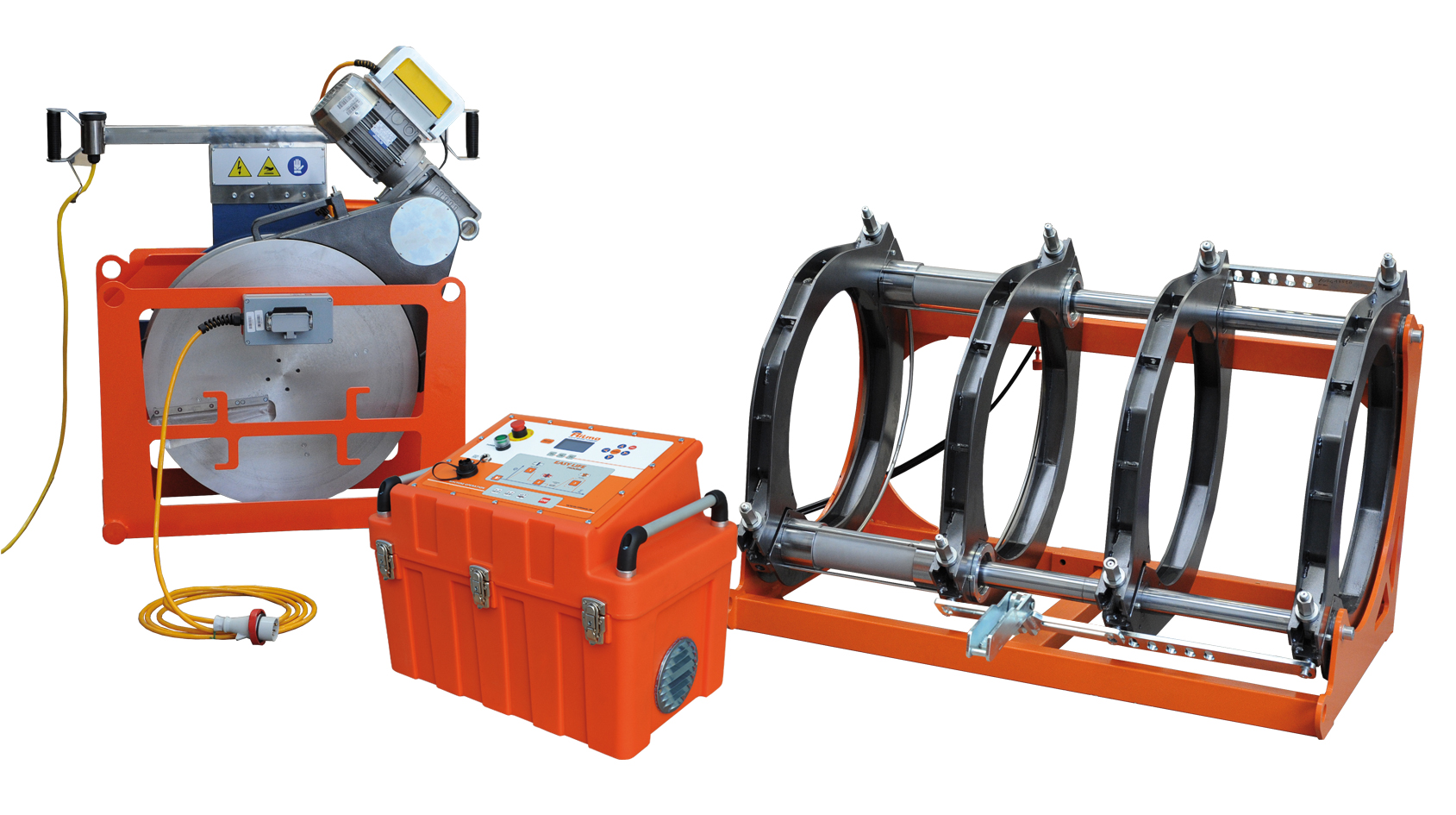

– A machine body with a steel bearing frame
– Clamps in steel
– Insert in steel with quick locking/unlocking system. No tools required
– Self detaching device: helps removing the heating plate during welding procedure
– An heating plate with separate thermometer for reading the working temperature that can be extracted
– An electric milling cutter with a safety micro-switch and overload cutout, that can be extracted
– Milling cutter’s plastic control box is protected by a metal frame
– Unlocking Milling Cutter, fast removing system to speed up the extraction from machine body
– An electro-hydraulic gear case EASY LIFE
– Digital electric connections box with the high precision (± 1°C) “Digital Dragon” temperature controller
– A milling cutter/heating plate support

Technical features:

Materials	HDPE/PP/PB/PVDF
Working range	Ø 200 ÷ 500 mm
Power supply	230 VAC Single phase 50/60 Hz 400 VAC Three phase 50/60 Hz
Total absorbed power	7950 W (230 V); 7200 W (400 V)
Memory	4000 report
Working temperature	180° ÷ 280° C
Pressure working range	0 ÷ 150 bar
Weight body machine	230 Kg
Weight gear case	37 Kg
Dimension body machine	1265x790x780 mm
Dimension gear case	585x384x463 mm
