UNIVERSAL 315 (Ø 20 ÷ 315 mm)
UNIVERSAL 315 V1 Electrofusion welding machine welds low pressure HDPE pipes or fittings with a diameter ranging from Ø 32 ÷ 315 mm; while for PP-R, diameter ranges from 20 ÷ 63 mm (optional cables)
MACHINE SPECIFICATIONS
– Graphic display
– Auto recognition of fittings
– Memory with 350 welding reports
– Report in PDF File
– Serial/USB connector (optional)
– Self-compensation of the current supplied
(according to the ambient temperature)
– Transport case
– Firmware upgradable via USB

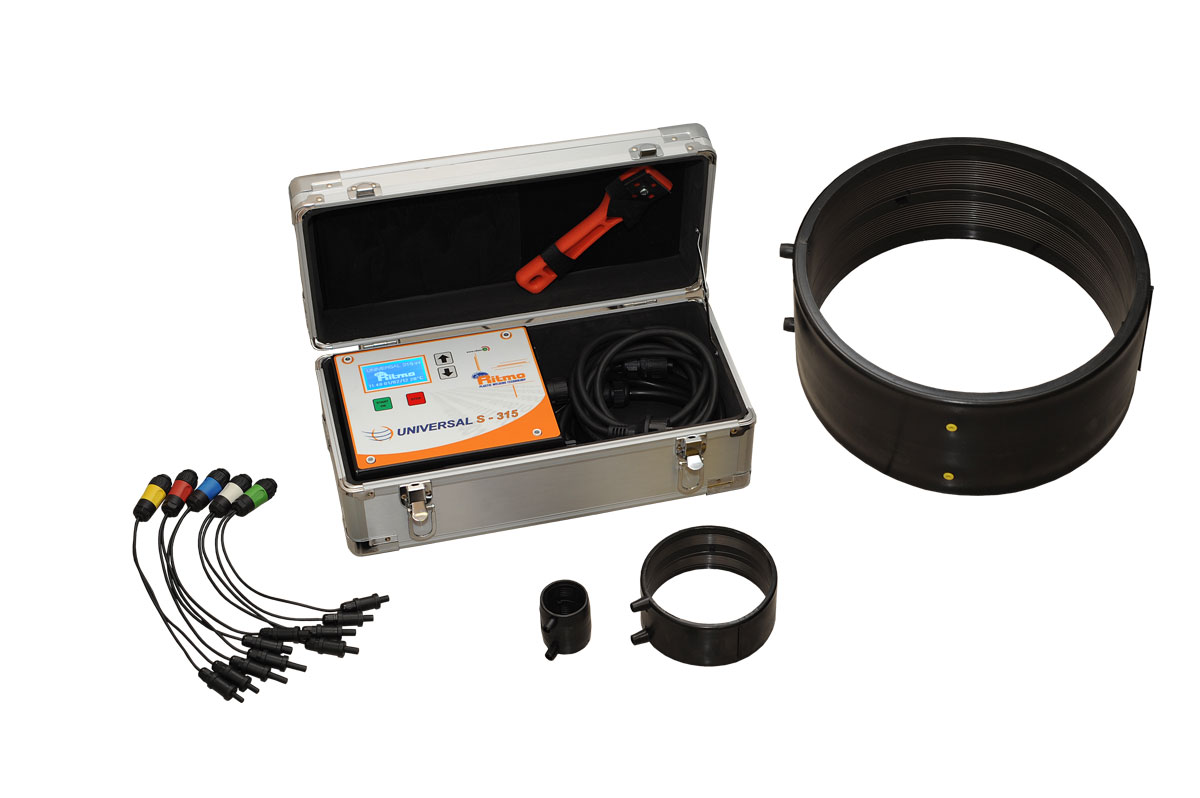

STANDARD COMPOSITION
– Carrying suitcase
– Welding cables * (A00, A01, A02, A03, A04, A00+)
– Welding extension cable
– Manual scraper
– Shoulder belt
ON REQUEST (ACCESSORIES)
– serial/USB adapter (welding data transfer)
– welding cable A05
| Materials | – HDPE – low pressure- PP-R (ON REQUEST) |
| Working range | Ø 20 ÷ 315 mm |
| Power supply | 230 V single phase 50/60 Hz 110 V single phase 50/60 Hz |
| Total absorbed power | 2470 W (230 V) 2700 W (110 V) |
| Outside temperature range | -10° ÷ 45° C |
| Temperature compensation | Automatic Electronic |
| Protection degree | IP 54 |
| Dimensions machine | 255 x 180 x 110 mm (230 V) 330 x 270 x 220 mm (110 V ) |
| Dimensions carrying case | 220 x 450 x 180 mm (230 V) 410 x 290 x 485 mm (110 V) |
| Weight machine | 3,4 Kg (230 V) 19 Kg (110 V) |
| Weight machine and carrying case | 7,2 Kg (230 V) |
