Mini 160 Joyt – Joyt Elbows

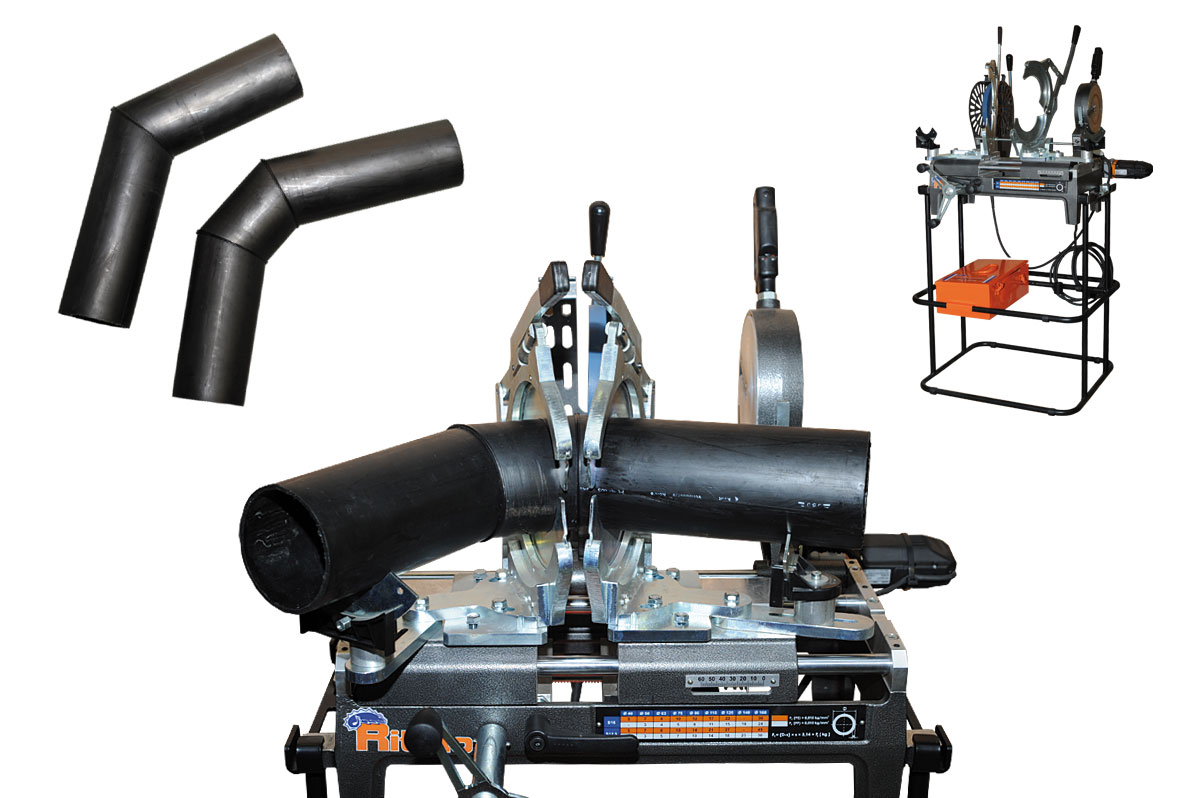

MINI 160 JOYT and MINI 160 JOYT ELBOWS are portable butt fusion welders for drainage pipes up to Ø 160 mm.

MINI 160 JOYT ELBOWS contains special jaws for manufacturing elbows.

This machine is known by its special features:

  • Heating plate that can be extracted
  • Safety microswitches on the milling cutter to avoid accidental starting
  • Interconnected lateral supports
  • Frame that is practical during working and transportation.
  • Machine body includes a spring-loaded pressure-regulating device and the rack-feed movement of the carriage provided by a handwheel
  • Rapid-lock clamps, used for locking elbows (also with a very short neck), tees and Y-branches without the need of any additional device
  • Protection housing around the heating element



Available in two versions: one with a fixed mechanical thermostat (TF) and one with an adjustable electronic thermoregulator (TE).



STANDARD COMPOSITION
– Machine body with a milling cutter and lateral supports
– TP 200 TE plate or TF plate
– Right and Left clamp with inserts Ø 40 ÷ 160 mm
– Frame MINI 160 JOYT
– Working/transport steel case



Technical features:

Materials HDPE – PP – PB – PVDF
Working range Ø 40 ÷ 160 mm
Power supply TF 230 V single phase 50/60 Hz
TE 230 V single phase 50/60 Hz
Total abdorbed power 2100 W
Working temperature TE: 180° ÷ 280° C
TF: 210° C ± 5%
Dimensions 664x580x1235 mm
Weight standard composition 50 Kg
