HDPE FITTINGS PE100 Injection Fittings

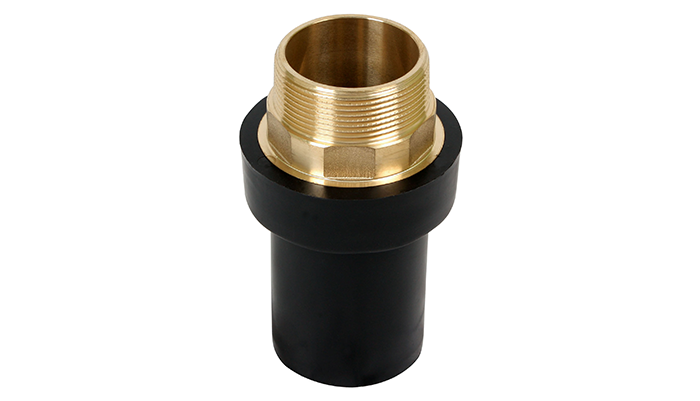

PE BRASS TRANSITION MALE (for water)

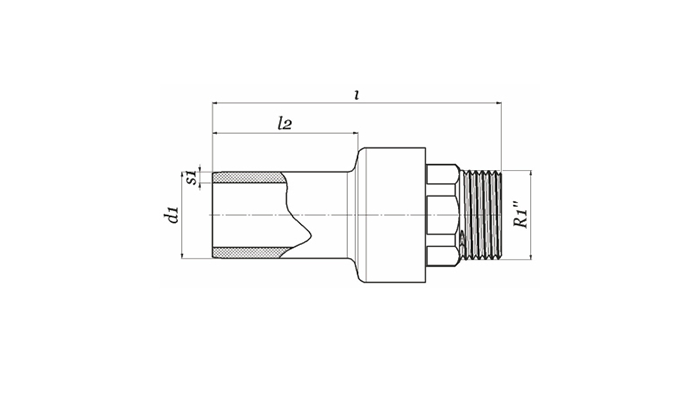

| D1 (MM) |
R1 (INCH) |
ARTICLE NO | L (MM) |
L2 (MM) |
S1 (MM) |
WEIGHT (KG) |
BOX (PCS) |
|---|---|---|---|---|---|---|---|
| 20 | 1/2″ | 01 117 200 0020 | 90 | 41 | 3,0 | 0,067 | 100 |
| 25 | 3/4″ | 01 117 200 0025 | 84 | 41 | 3,0 | 0,117 | 75 |
| 32 | 1″ | 01 117 200 0032 | 103 | 44 | 3,0 | 0,215 | 50 |
| 40 | 1 1/4″ | 01 117 200 0040 | 122 | 49 | 3,7 | 0,515 | 25 |
| 50 | 1 1/2″ | 01 117 200 0050 | 121 | 55 | 4,6 | 0,676 | 25 |
| 63 | 2″ | 01 117 200 0063 | 140 | 63 | 5,8 | 0,641 | 10 |
| 75 | 2 1/2″ | 01 117 200 0075 | 146 | 70 | 6,8 | 1,513 | 9 |
| 90 | 3″ | 01 117 200 0090 | 168 | 79 | 8,2 | 1,513 | 5 |
| 110 | 4″ | 01 117 200 0110 | 179 | 82 | 10,0 | 2,120 | 2 |
| 125 | 4″ | 01 117 200 0125 | 186 | 87 | 11,4 | 2,365 | 2 |
