Trap Connection 90° Bend

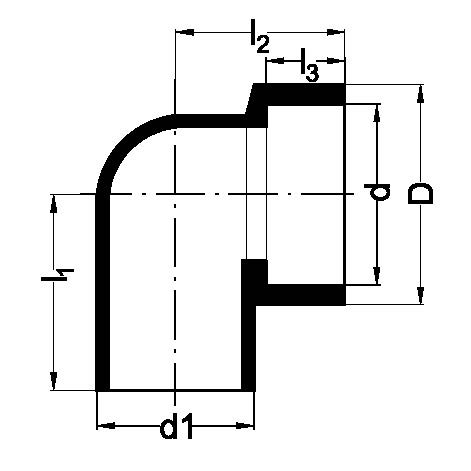

Trap connection 90° bend
Code d1 d D l1 l2 I3
51 04 11 40 butt-weld only 46 56 50 44 20
51 05 11 50 butt-weld only 46 53 45 46 18
51 56 11 56 butt-weld only 46 56 60 60 35
51 05 12 50 butt-weld only 58 65 50 45 20
51 56 12 56 butt-weld only 58 65 70 60 28
