Reducer Eccentric

HDPE FITTINGS HDPE Special Drainage Fittings Reducer Eccentric

5393097d0be569034920770c_slideshow52.jpg 539308be93bd56e12725c37c_slideshow4.jpg

Reducer Eccentric



Reducer Eccentric

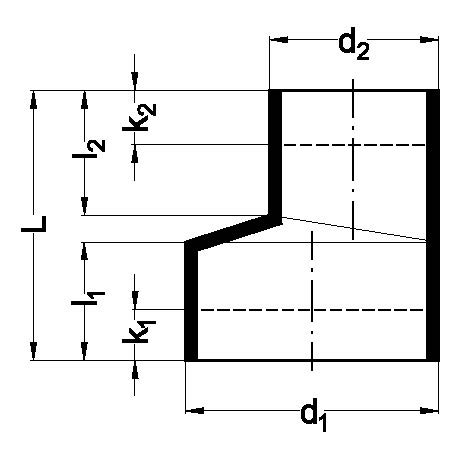

Code d1/ d2 L l1 l2 k1
16 05 04 50 40 80 35 37 20
16 56 04 56 40 80 35 37 20
16 56 05 56 50 80 35 37 20
16 06 04 63 40 80 35 37 20
16 06 05 63 50 80 35 37 20
16 06 56 63 56 80 35 37 20
16 07 04 75 40 80 35 30 20
16 07 05 75 50 80 35 37 20
16 07 56 75 56 80 35 37 20
16 07 06 75 63 80 35 37 20
16 09 04 90 40 80 30 33 20
16 09 05 90 50 80 30 34 20
16 09 56 90 56 80 30 36 20
16 09 06 90 63 80 30 39 20
16 09 07 90 75 80 30 44 20
16 11 04 110 40 80 31 34 20
16 11 05 110 50 80 31 34 20
16 11 56 110 56 80 31 35 20
16 11 06 110 63 80 31 34 20
16 11 07 110 75 80 31 36 20
16 11 09 110 90 80 31 41 20
16 12 05 125 50 80 35 37 20
16 12 56 125 56 80 35 37 20
16 12 06 125 63 80 35 37 20
16 12 07 125 75 80 35 30 20
16 12 09 125 90 80 35 32 20
16 12 11 125 110 80 36 36 20
16 16 11 160 110 80 28 36 20
16 16 12 160 125 80 32 36 20
