HDPE FITTINGS HDPE Special Drainage Fittings

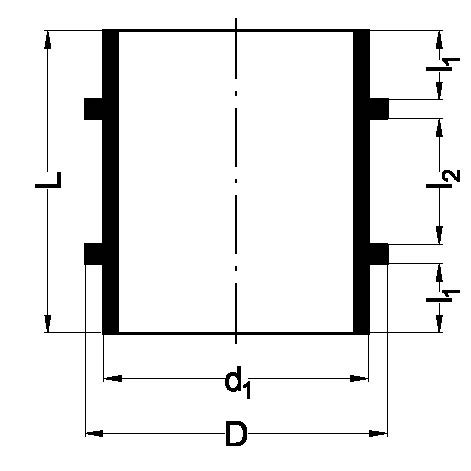

Double – Flange Bushing
| Double – Flange Bushing | |||||
| Code | d1 | D | L | l1 | I2 |
| 43 11 15 | 110 | 118 | 80 | 17 | 31 |
| 43 12 15 | 125 | 133 | 80 | 17 | 31 |
| 43 16 15 | 160 | 170 | 91 | 25 | 31 |
| 43 20 15 | 200 | 216 | 141 | 35 | 41 |
| 43 25 15 | 250 | 262 | 201 | 60 | 41 |
| 43 31 15 | 315 | 327 | 201 | 60 | 41 |
