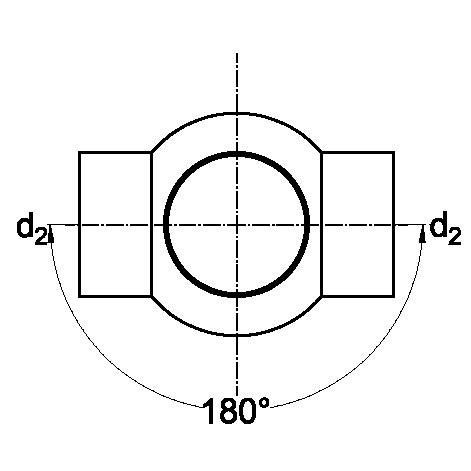

Double call Branch 88,5° - 180°

Fabricated – 180°

Double ball branches can be applied in soil and waste stacks.

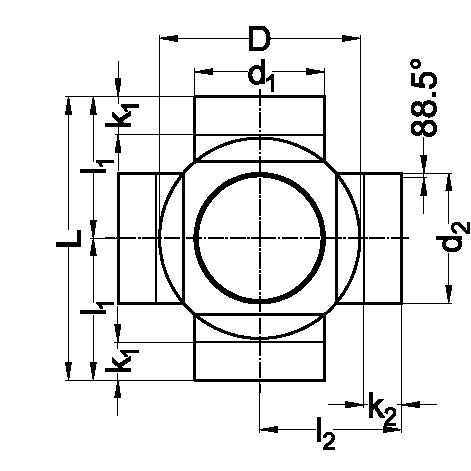

Double Ball Branch 88,5° – 180°
Code d1/ d2 L l1 l2 D
24 11 34 110 50 275 135 140 170
24 11 35 110 56 275 135 140 170
24 11 36 110 63 275 135 140 170
24 11 37 110 75 275 135 140 170
24 11 39 110 90 275 135 140 170
24 11 03 110 110 275 135 140 170
24 12 34 125 50 260 130 145 190
24 12 35 125 56 260 130 145 190
24 12 37 125 75 260 130 145 190
24 12 03 125 110 260 130 125 190
24 12 32 125 125 260 130 125 190
