HDPE FITTINGS HDPE Special Drainage Fittings

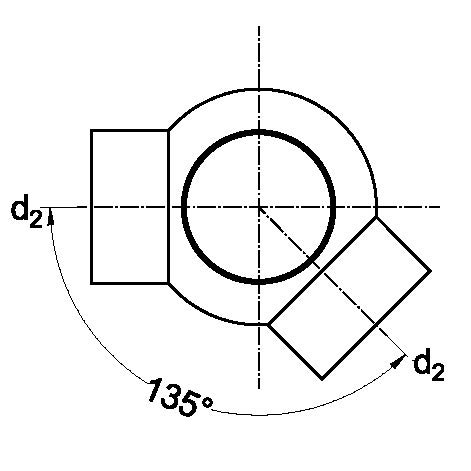

Double Ball Branch 88,5° – 135°
Fabricated – 135°.
Double ball branches can be applied in soil and waste stacks.

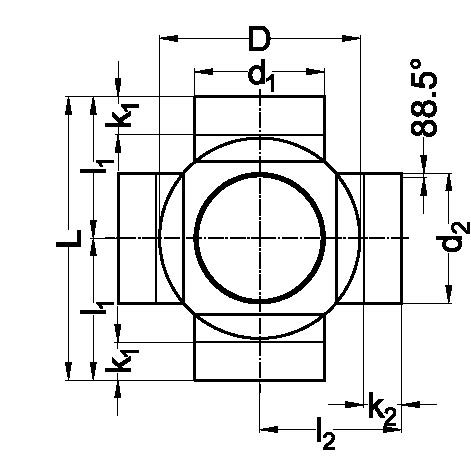

| Double Ball Branch 88,5° – 135° | ||||||
| Code | d1 | d2 | L | l1 | l2 | D |
| 24 11 24 | 110 | 50 | 275 | 135 | 140 | 170 |
| 24 11 25 | 110 | 56 | 275 | 135 | 140 | 170 |
| 24 11 26 | 110 | 63 | 275 | 135 | 140 | 170 |
| 24 11 27 | 110 | 75 | 275 | 135 | 140 | 170 |
| 24 11 29 | 110 | 90 | 275 | 135 | 140 | 170 |
| 24 11 02 | 110 | 110 | 275 | 135 | 140 | 170 |
| 24 12 24 | 125 | 50 | 260 | 130 | 145 | 190 |
| 24 12 25 | 125 | 56 | 260 | 130 | 145 | 190 |
| 24 12 27 | 125 | 75 | 260 | 130 | 145 | 190 |
| 24 12 02 | 125 | 110 | 260 | 130 | 125 | 190 |
| 24 12 22 | 125 | 125 | 260 | 130 | 125 | 190 |
