Bend 90° with long side

HDPE FITTINGS HDPE Special Drainage Fittings Bend 90° with long side

5393097d0be569034920770c_slideshow52.jpg 539308be93bd56e12725c37c_slideshow4.jpg

Bend 90° with long side

Bend 90° with long side

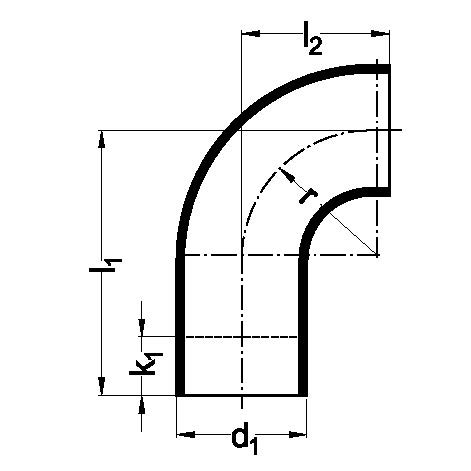

Code d1 l1 l2 r k1
11 04 92 40 electrofusable at one side 93 43 40 45
11 05 92 50 electrofusable at one side 103 53 50 45
11 56 92 56 electrofusable at one side 120 59 56 55
11 06 92 63 electrofusable at one side 130 66 65 60
11 07 92 75 electrofusable at one side 140 78 75 60
11 09 92 90 electrofusable at one side 153 93 90 60
11 11 96 110 electrofusable at one side 270 100 100 170
11 12 92 125 electrofusable at one side 190 128 125 60
